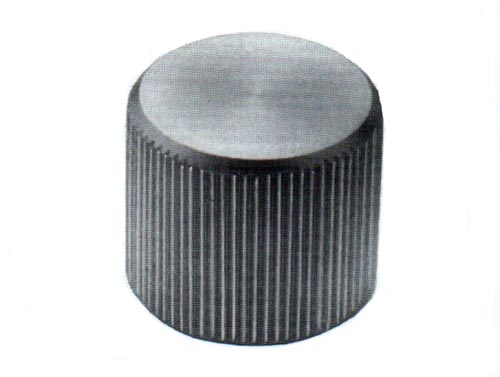

Knobs- Classic Aluminum On Handles Unlimited

Fed Supply Code # 08730 | 888-634-9920 | 401-667-7870 | sales@handlesunlimited.com

1 - 25 of 50 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Shape/Design

Series

Thread Size

Shaft Size

Dimension- A (mm)

Dimension- B

Dimension- B (mm)

Item #	Item Name	Shape/Design	Series	Thread Size	Shaft Size	Dimension- A (mm)	Dimension- B	Dimension- B (mm)

1022	N/A Knobs- Classic Aluminum	N/A Straight Knurled	N/A 1000	N/A 4-40	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart.	N/A .375 9.53	N/A .500	N/A 12.70
1021	N/A Knobs- Classic Aluminum	N/A Straight Knurled	N/A 1000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .500 12.70	N/A .688	N/A 17.48
1017	N/A Knobs- Classic Aluminum	N/A Straight Knurled	N/A 1000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .500 12.70	N/A .500	N/A 12.70
1003	N/A Knobs- Classic Aluminum	N/A Straight Knurled	N/A 1000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .625 15.88	N/A .625	N/A 15.88
1020	N/A Knobs- Classic Aluminum	N/A Straight Knurled	N/A 1000	N/A 6-32	N/A .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .750 19.05	N/A .625	N/A 15.88
1027	N/A Knobs- Classic Aluminum	N/A Straight Knurled	N/A 1000	N/A 6-32	N/A .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .938 23.83	N/A .750	N/A 19.05
1073	N/A Knobs- Classic Aluminum	N/A Straight Knurled	N/A 1000	N/A 6-32	N/A .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A 1.250 31.75	N/A .750	N/A 19.05
1009	N/A Knobs- Classic Aluminum	N/A Straight Knurled Skirted	N/A 1000	N/A 4-40	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart.	N/A .625 15.88	N/A .375	N/A 9.53
1004	N/A Knobs- Classic Aluminum	N/A Straight Knurled Skirted	N/A 1000	N/A 4-40	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart.	N/A .500 12.70	N/A .375	N/A 9.53
1016	N/A Knobs- Classic Aluminum	N/A Straight Knurled Skirted	N/A 1000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .625 15.88	N/A .500	N/A 12.70
1015	N/A Knobs- Classic Aluminum	N/A Straight Knurled Skirted	N/A 1000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .875 22.23	N/A .500	N/A 12.70
1002	N/A Knobs- Classic Aluminum	N/A Straight Knurled Skirted	N/A 1000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A 1.000 25.40	N/A .625	N/A 15.88
1019	N/A Knobs- Classic Aluminum	N/A Straight Knurled Skirted	N/A 1000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A 1.125 28.58	N/A .750	N/A 19.05
C-1009	N/A Knobs- Classic Aluminum	N/A Counter Bored Knob	N/A C-1000	N/A 4-40	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart.	N/A .625 15.88	N/A .375	N/A 9.53
C-1004	N/A Knobs- Classic Aluminum	N/A Counter Bored Knob	N/A C-1000	N/A 4-40	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart.	N/A .500 12.70	N/A .375	N/A 9.53
C-1016	N/A Knobs- Classic Aluminum	N/A Counter Bored Knob	N/A C-1000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .625 15.88	N/A .500	N/A 12.70
C-1015	N/A Knobs- Classic Aluminum	N/A Counter Bored Knob	N/A C-1000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .875 22.23	N/A .500	N/A 12.70
C-1002	N/A Knobs- Classic Aluminum	N/A Counter Bored Knob	N/A C-1000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A 1.000 25.40	N/A .625	N/A 15.88
C-1019	N/A Knobs- Classic Aluminum	N/A Counter Bored Knob	N/A C-1000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A 1.125 28.58	N/A .750	N/A 19.05
2010	N/A Knobs- Classic Aluminum	N/A Straight Knurled	N/A 2000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .500 12.70	N/A .375	N/A 9.53
2020	N/A Knobs- Classic Aluminum	N/A Straight Knurled	N/A 2000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .750 19.05	N/A .590	N/A 14.99
2030	N/A Knobs- Classic Aluminum	N/A Straight Knurled	N/A 2000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .937 23.80	N/A .708	N/A 17.98
2040	N/A Knobs- Classic Aluminum	N/A Straight Knurled	N/A 2000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A 1.250 31.75	N/A .984	N/A 24.99
2050	N/A Knobs- Classic Aluminum	N/A Straight Knurled Skirted	N/A 2000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .500 12.70	N/A .375	N/A 9.53
2060	N/A Knobs- Classic Aluminum	N/A Straight Knurled Skirted	N/A 2000	N/A 6-32	N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart.	N/A .750 19.05	N/A .593	N/A 15.06
