Specifications
Shape/Design |
N/A Straight Knurled |
Description |
N/A One-Piece Construction Rugged, Functional design. Aluminum Knobs, Black or Natural anodized. With or Without index line. Located 120° from either set screw. |
Series |
N/A 2000 |
Material |
N/A Aluminum |
Thread Size |
N/A 6-32 |
Shaft Size |
N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart. |
Dimension- A (mm) |
N/A .750 19.05 |
Dimension- B |
N/A .590 |
Dimension- B (mm) |
N/A 14.99 |
Dimension- C |
N/A .177 |
Dimension- C |
N/A 4.50 |
Dimension- D |
N/A .295 |
Dimension- D |
N/A 7.49 |
Dimension- E |
N/A .510 |
Dimension- E |
N/A 12.95 |
Dimension- F |
N/A .622 |
Dimension- F |
N/A 15.80 |
Dimension- G |
N/A .695 |
Dimension- G |
N/A 17.65 |

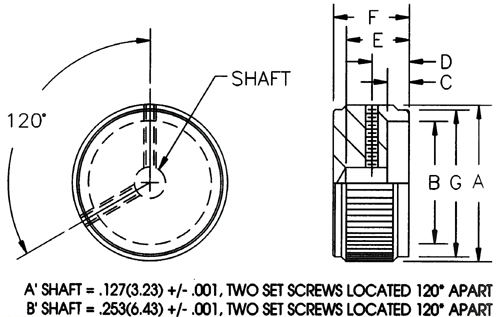

Line Drawing |
N/A
 Line Drawing |
