Specifications
Shape/Design |
N/A Straight Knurled Skirted |
Description |
N/A One-Piece Construction Rugged, Functional design. Aluminum Knobs, Black or Natural anodized. With or Without index line. Located on the Skirt. |
Series |
N/A 1000 |
Material |
N/A Aluminum |
Thread Size |
N/A 6-32 |
Shaft Size |
N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. .253 (6.43) ±.001, Two Set Screws Located 120° Apart. |
Dimension- A (mm) |
N/A 1.000 25.40 |
Dimension- B |
N/A .625 |
Dimension- B (mm) |
N/A 15.88 |
Dimension- C |
N/A .813 |
Dimension- C |
N/A 20.65 |
Dimension- D |
N/A .375 |
Dimension- D |
N/A 9.53 |
Dimension- E |
N/A .375 |
Dimension- E |
N/A 9.53 |
Dimension- F |
N/A .156 |
Dimension- F |
N/A 3.96 |
Dimension- G |
N/A .703 |
Dimension- G |
N/A 17.86 |

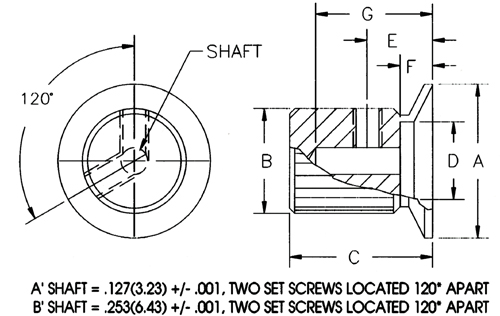

Line Drawing |
N/A
 Line Drawing |
