Specifications
Shape/Design |
N/A Contemporary Plain Knob |
Description |
N/A One-piece construction Rugged. Functional design. Aluminum Knobs, Black or Natural anodized. With or without colored insert. With or without index line filled. |
Series |
N/A 1-00 |
Material |
N/A Aluminum |
Thread Size |
N/A 4-40 |
Shaft Size |
N/A .127 (3.23) ± .001, Two Set Screws Located 120° Apart. |
Dimension- A (mm) |
N/A .375 9.53 |
Dimension- B |
N/A .328 |
Dimension- B (mm) |
N/A 8.33 |
Dimension- C |
N/A .438 |
Dimension- C |
N/A 11.13 |
Dimension- D |
N/A .281 |
Dimension- D |
N/A 7.14 |
Dimension- E |
N/A .500 |
Dimension- E |
N/A 12.70 |
Dimension- F |
N/A .375 |
Dimension- F |
N/A 9.53 |

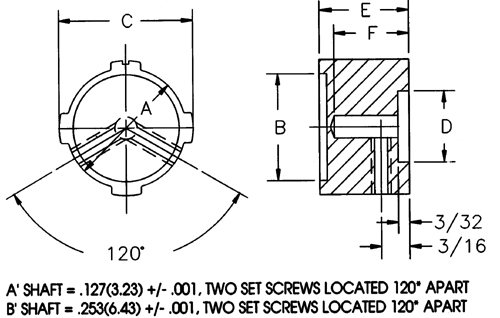

Line Drawing |
N/A
 Line Drawing |
